EV Meter Pay²
A smart level-2 public charging station designed for hotels, shopping centers, parking lots, workplaces, municipalities and more…
This universal charging station is equipped with a built-in card reader that accepts every major payment method including debit and credit cards, digital wallets, QR codes, prepaid, NFC and more. EV Meter’s smart, secure and feature-rich solution enables businesses to take initiative and maximize their revenue.
High-Performance
Maximum 22kW power output
Open Payment System
Accept any type of
payment method
24/7 Monitoring
Real-time event notifications and remote software updates
Easy Installation
Quick to deploy in any location
Dual Port
Allow two cars to charge simultanously and maximize profit
OCPP Supported
Manage the charging station by using EV Meter Core or any other management platform

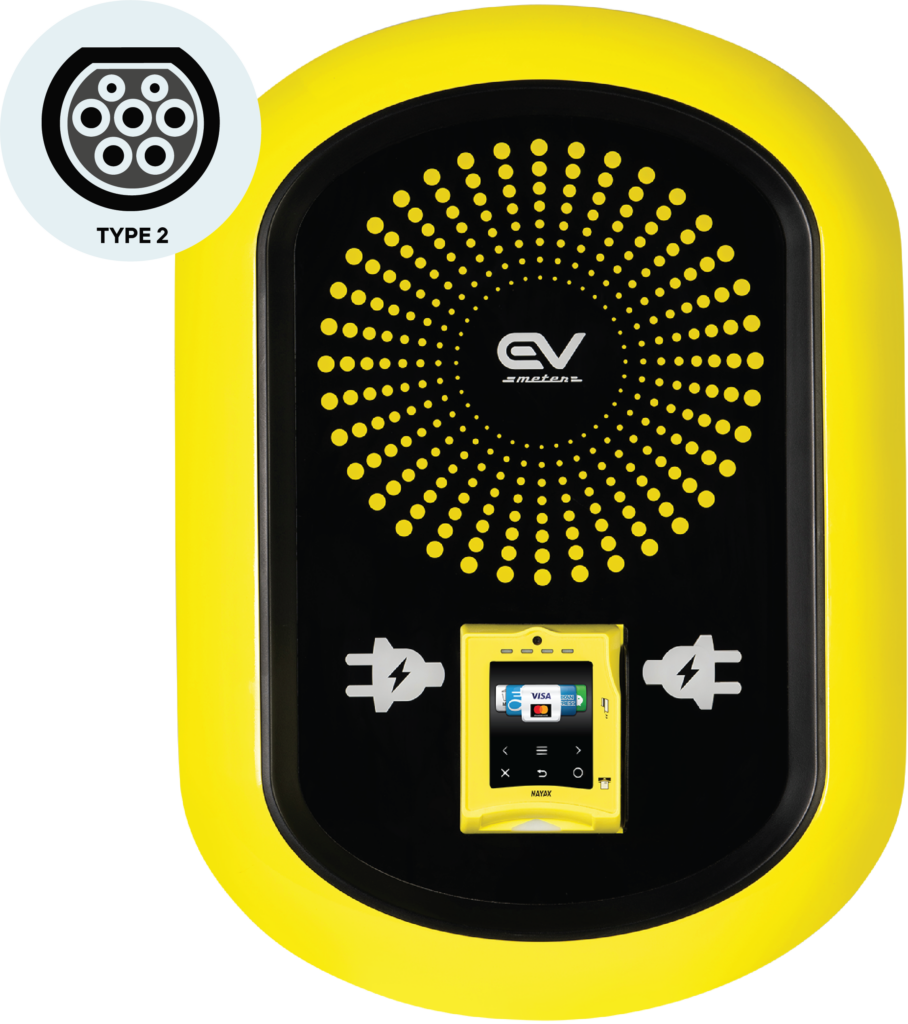

EV Meter Pay²
Electrical Data
AC Power Supply | 3P + N + PE |
AC Input Voltage | 380-400 VAC +/-10%, 50-60Hz |
AC Output Voltage | Two 380-400 VAC +/-10%, 50-60Hz |
Maximum Input / Output Current | 2*(3x32A) |
Maximum Input / Output Power | 2X22Kw |
Number of Sockets | Two |
Communication
| Interface Protocol | OCPP 1.6 Supported |
| Server Communication | Ethernet, 4G |
Supported Payment Schemes
| Debit & Credit Cards | Swipe, contact, contactless, EMV chip cards |
| Mobile & NFC Payments | Google Pay, Apple Pay, Swish and more |
| Prepaid cards & closed environments Static and Dynamic QR codes | Alipay, WeChat Pay and others |
Safety & Protections
Safety Protections | Electronic RCD 30mA AC |
Power Limit Control | Mode 3 PWM control according to IEC 61851-1 |
| Type 2 Socket Protection | IEC 62196-1 , IEC 62196-2 |
| Available Connections | Type 2 Socket or 5m Cable with Plug |
Enclosure & Environmental Conditions
IP Rating | IP55 |
Enclosure protection rating | IK10 |
Payment Terminal Impact Protection | IK6 |
Enclosure Material | PC + UV |
Operating Temperature | (-25°C) to (+55°C) |
Ambient Temperature Storage | (-30°C) to (+70°C) |
Status LEDs | Yes |
Light Beacon | RGB color indicator |
Built-in Energy Meter | Yes |
Weight & Dimensions (WxHxD)
Socket | 365x520x266 mm, 15kg |
Standards & Certifications
| ROHS |
| REACH |
| CE Compliant |
Optional Devices
| Type 2 Socket Protection | Shutter |
| Dynamic Load Management | Yes |
| Pedestal | Yes |
Bee Meter VPOS Touch
A smart level-2 public charging station designated for hotels, shopping centers, parking lots, workplaces, municipalities and more.
This universal charging station is equipped with a built-in card reader that accepts every payment method including debit and credit cards, digital wallets, QR codes, prepaid, NFC and more. EV Meter’s smart, secure and feature-rich solution enables businesses to take initiative and maximize their revenue.
24/7 Monitoring
Real-time event notifications and remote software updates
Easy Installation
Quick to deploy in any location
Weather Resistant
Designed to withstand any environmental conditions
Open Payment System
Accept any type of payment method
OCPP Supported
Manage the charging station by using HIVE or any other management platform
Multi-Language
Operates in 15 languages with unique voice interaction features

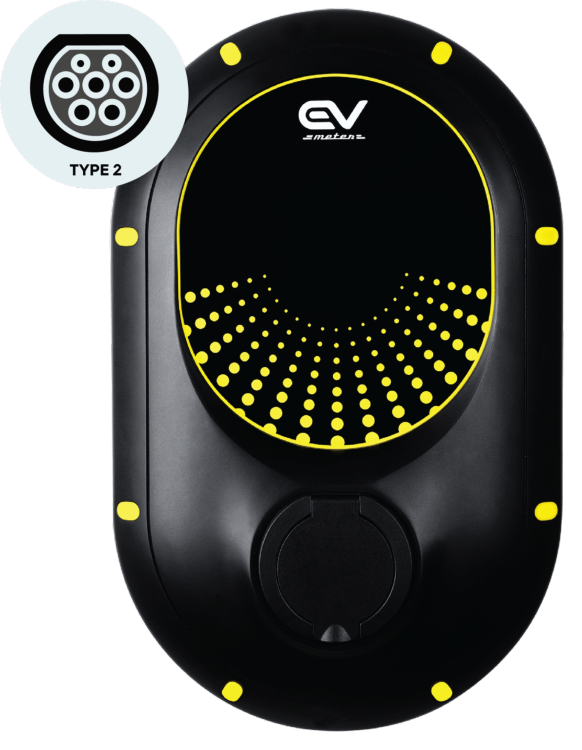

Bee Meter Vpos Touch
Electrical Data
AC Power Supply | 3P + N + PE |
AC Input Voltage | 380-400 VAC +/-10%, 50-60Hz |
AC Output Voltage | 380-400 VAC +/-10%, 50-60Hz |
Maximum Input / Output Current | 3x32A |
Maximum Input / Output Power | 22kW |
Number of Plugs | One |
Communication
| Interface Protocol | OCPP 1.6 Supported |
| Server Communication | 4G |
Supported Payment Schemes
| Debit & Credit Cards | Swipe, contact, contactless, EMV chip cards |
| Mobile & NFC Payments | Google Pay, Apple Pay, Swish and more |
| Prepaid cards & closed environments Static and Dynamic QR codes | Alipay, WeChat Pay and others |
Safety & Protections
Safety Protections | Electronic RCD 30mA AC |
Power Limit Control | Mode 3 PWM control according to IEC 61851-1 |
| Type 2 Socket Protection | IEC 62196-1 , IEC 62196-2 |
| Available Connections | Type 2 Socket or 5m Cable with Plug |
Enclosure & Environmental Conditions
IP Rating | IP55 |
Enclosure Material | PC + UV |
Operating Temperature | (-25°C) to (+55°C) |
Ambient Temperature Storage | (-30°C) to (+70°C) |
Status LEDs | Yes |
Light Beacon | RGB color indicator |
Built-in Energy Meter | Yes |
Weight & Dimensions (WxHxD)
| Cable | 450x300x180 mm, 8Kg |
| Socket | 480x300x180 mm, 6Kg |
Standards & Certifications
| ROHS |
| REACH |
| CE Compliant |
Optional Devices
| Type 2 Socket Protection | Shutter |
| Dynamic Load Management | Yes |
| Pedestal | Yes |
