Sinexcel MCS Satellite Charging System Charging Station

Supports up to 16 air-cooled connectors or liquid-cooled connectors

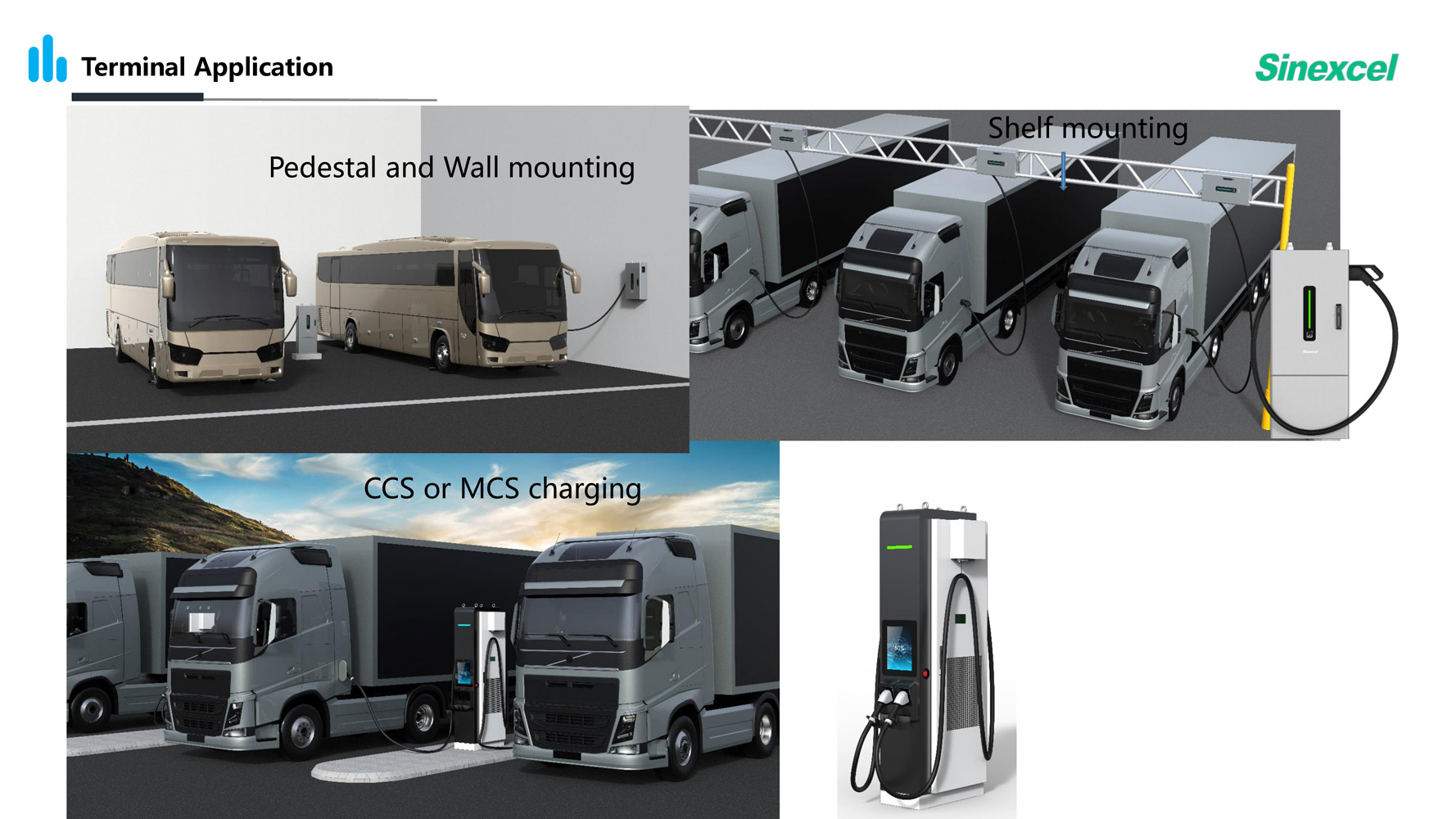

The Sinexcel MCS Satellite Charging System supports charging for up to 16 charging bays using 8 dual port satellite charging stations and one 1280kW Power Bank. The Sinexcel MCS Mini supports charging for up to six charging bays using 3 dual port satellite charging stations and one 480 kW power bank. The maximum charging rate per bay is 280kW for 800V vehicles and 350 kW for 1000V vehicles. Power is dynamically load balanced over the satellite charging stations so that the power bank is fully utilised. The MCS system provides charging rates of up to 500 amps using a CCS 2 connector and 1000 amps using the new international Megawatt Charging System (MCS) charging connector currently under development for large battery electric vehicles. The MCS standard supports a maximum charging rate of 3.75 megawatts (3,000 amps at 1,250 volts direct current (DC)).

FEATURES

General

  • 480 kW powerbank (six charging bays) or 1280 kW powerbank (16 charging bays).
  • Maximum charging rate per bay is 280kW for 800V vehicles and 350 kW for 1000V vehicles.
  • Maximum current per connector 350 A (air cooled) and 500 A (liquid cooled).
  • Payment via smart phone app, RFID card and EFTPOS tap and go.
  • OCPP 2.0 compatible.
  • Ethernet and 4G communications.
  • Liquid cooling for fast charging in hot climatic conditions.

Powerbank

  • AC Input: 3P+N+PE
  • Input Voltage: AC 400V
  • Frequency: 50/60Hz
  • THDi: < 5%
  • Output Voltage: DC 200-1000 Vdc
  • Rated Power: 1280kW or 480 kW (Mini)
  • Max current: 66A
  • Emergency shutdown button.
  • Efficiency: 95%.
  • Grounding type: TN-S, TT
  • Hot swappable 20 kW power modules
  • EMC: Class A
  • Ambient operating temperatures: -25°C~+65°C (Derating over 50°C)
  • Relative Humidity: 0~95%
  • Dimensions:
    • 1280 kW Power Bank: (W2300*D1100*H2100mm)
    • 480 kW Power Bank: W1600mm*D1100mm*H2100mm
  • Weight:
    • 1280 kW Powerbank: < 1500 kg
    • 480 kW Powerbank: ≤900 kg
  • Enclosure material: Stainless steel
  • System Standard: IEC 61851
  • Forced air cooling
  • Ingress Protection of Enclosures: IP54 & IK10
  • Input current: 400VAC(±10%)
  • Power Factor: 0.99
  • Protections
    • Lightning protection
    • Emergency protection
    • Protection
    • Overload protection
    • Short circuit protection
    • Leakage protection
    • Overcharge protection
    • Over/Under voltage protection
    • Reverse connection protection
    • Over temperature protection

Satellite Charging Station

  • Operating Voltage: AC230V
  • Input DC Voltage: DC 200-1000V
  • Output Voltage: 1000kW(500+500)
  • Max Output power: 80kW
  • Max current per connector:
    • CCS 2 – 350A(Boost 400A) air cooled
    • CCS 2 – 500A – 1000A liquid cooled.
  • Standards: IEC 62196 & IEC 61851
  • Energy Meter: DC Meter
  • Connector Type: CCS2+CCS2
  • Network Interface: 4G/LAN
  • Dimensions: (D800*W450*H2100mm)
  • ngress Protection of Enclosures: IP54 & IK10
  • Weight: ≤250kg
  • Cable Length: 7.5 meter. (Only 700A is 4.5m)
  • Communication Protocol OCPP 2.0.
  • Screen: 15″ HD touchscreen
  • EMC: Class A
  • Payment options: QR code/Swiping card/NFC (Optional)
  • Cable cooling: Liquid cooling/Air cooling
  • Operating temperature: -25°C~+65°C (Derating over 50°C)
  • Humidity: 5%~95%
  • Optional cable management
  • Protections:
    • DC Over current protection
    • Lightning protection
    • Emergency protection
    • Overload protection
    • Short-circuit protection
    • Leakage protection
    • Overcharge protection
    • Over/Under voltage protection
    • Reverse connect protection
    • Over temperature protection
